AISI 316L DN100 Johnson Wedge Wire Sand Control Screen Tube With Male Threaded
Johnson Wedge Wire Sand Control Screen Description:
Johnson Wedge Wire Sand Control Screen is made up of wrap wire and support rods.
The rods can be round wire / Vee shaped wire.
The wrap wire is Vee shaped.
Slot:20um-10000um.
It has a structure and high open area, as well as accurate slot dimension.
At the same time, It has a heat-resisting, anti-corrosive, good machine capability.
It can be used in many kinds of medium filtering.
Johnson Wedge Wire Sand Control Screen Specification:
| Name | Johnson Wedge Wire Sand Control Screen |
| Material | Stainless steel |
| Grade | 316L |
| O.D | 114mm |
| Size | DN100 |
| Slot size | 0.25 mm |
| Length | 1500mm |
| End connection | Male/female threaded |
| Wire size | 1.5x2mm Vee wire |
| Support rod | 1.8x2.5mm Vee wire |
| Wire shape | Vee shaped |
Johnson Wedge Wire Sand Control Screen Advantages:
High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Good flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap.
Johnson Wedge Wire Sand Control Screen Details:
-
- Wire Size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm, 3x4.6mm, 3x5mm, 3.2x6mm, 4x7mm etc. Also can make other sizes as your request.
- Support rods size: ø2.8mm, ø3.0mm, ø3.2mm, ø3.5mm, ø3.8mm,ø4.0mm, ø4.2mm, ø4.5mm, ø4.8mm,ø5.0mm, ø6.0mm or others.
-
Johnson Wedge Wire Sand Control Screen Specification:
| Sizes (inch) | OD (mm) | Slot (mm) | Length (m) | Tensile Strength | Collapse Strength | Wrap wire Vee-shaped wire(mm) (Width x height) | Support rod Round wire(mm) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.2x3.5mm | ø3.8MM×22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.2x3.5mm | ø3.8MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.2x3.5mm | ø3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2x6.0mm | ø6.0MM×32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3x3.5mm | ø3.8MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0x5.0mm | ø4.0MM×48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2x6.0mm | ø5.0MM×48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.2x3.5mm | ø4.0MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0x4.6mm | ø4.8MM×55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2x6.0mm | ø5.0MM×55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0x5.0mm | ø4.0MM×56 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0x5.0mm | ø4.0MM×59 |
| 16 | 426 | 1.0 | 2.9 | ＞80 | 37.5 | 3.0x5.0mm | ø4.0MM×54 |

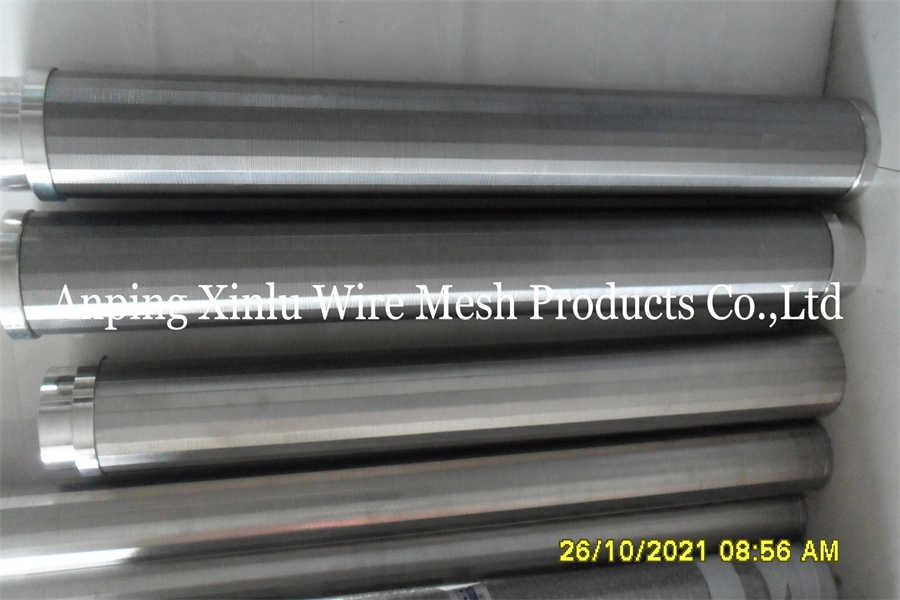

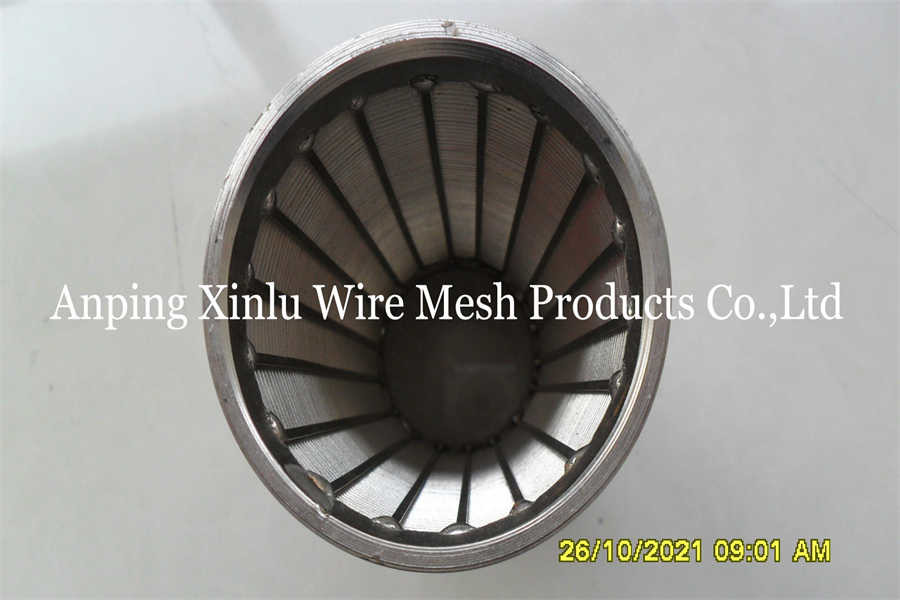

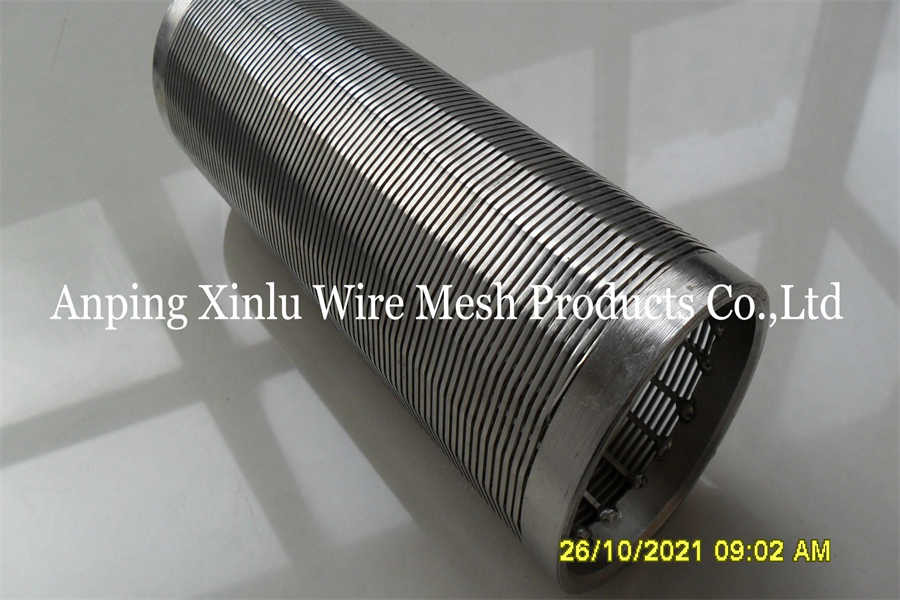

Johnson Wedge Wire Sand Control Screen Photos and Package:
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q:To quote,what’s information needed?
A: Material, slot (mesh size), diameter/ width, length, end type / frame size, quantity, usage,etc.
Q: How long is your delivery time?
A: It is 3-5 days if the goods are in stock; for mass order, it based on the quantity.
Q: Could you provide free sample?
A: Yes, it is available for free sample, but the customers need to pay the cost of freight, which can be deducted in following order.
Q: What is your terms of payment?
A: 30% T/T as deposit,the balance before shipment.
Q:How to confirm the quality about your products?
A:During production, a few samples can be delivered to you for quality confirmation. but the customers need to pay the cost of freight.
Q: How do you make our business long-term and good relationship?
A: Effective communication; Qualified products, competitive prices, timely delivery, considerate service, etc.
