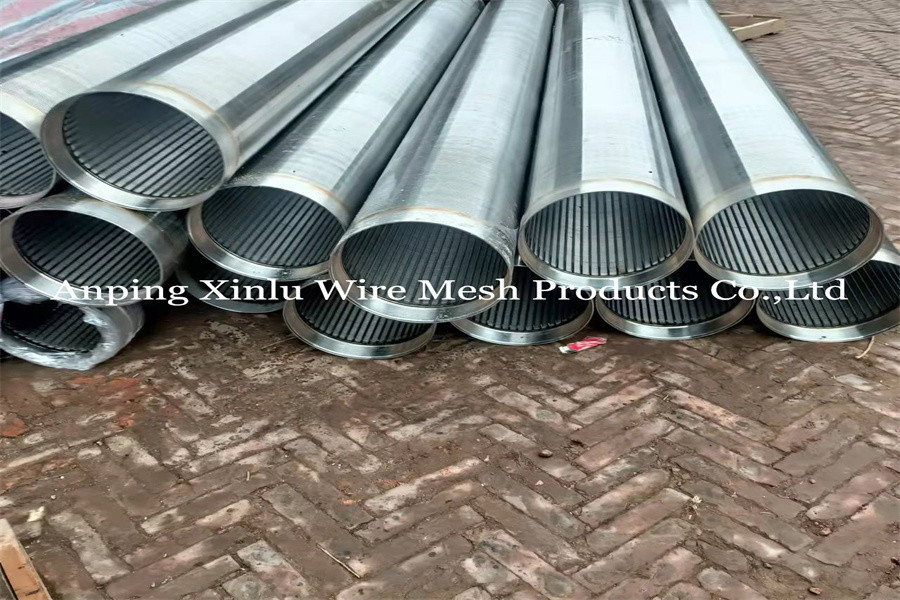

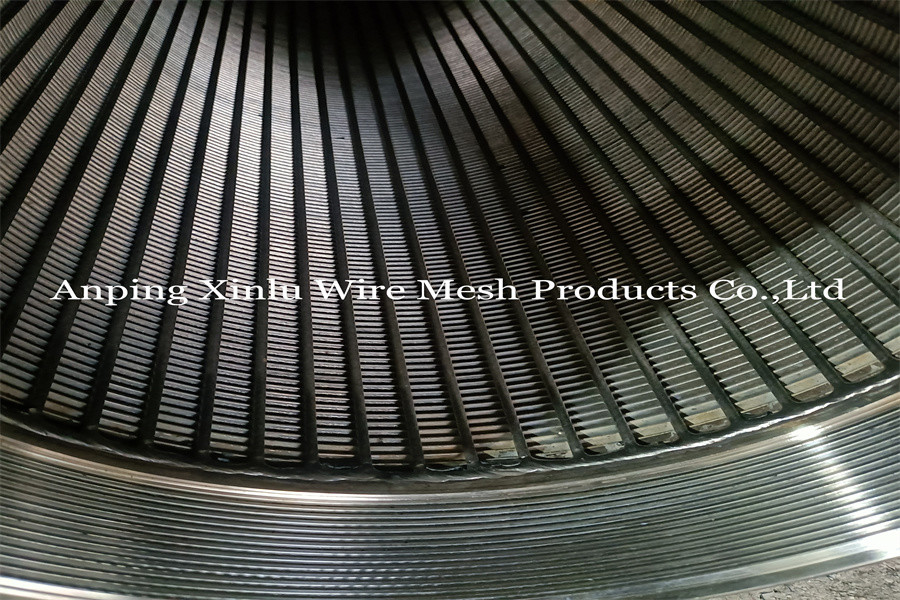

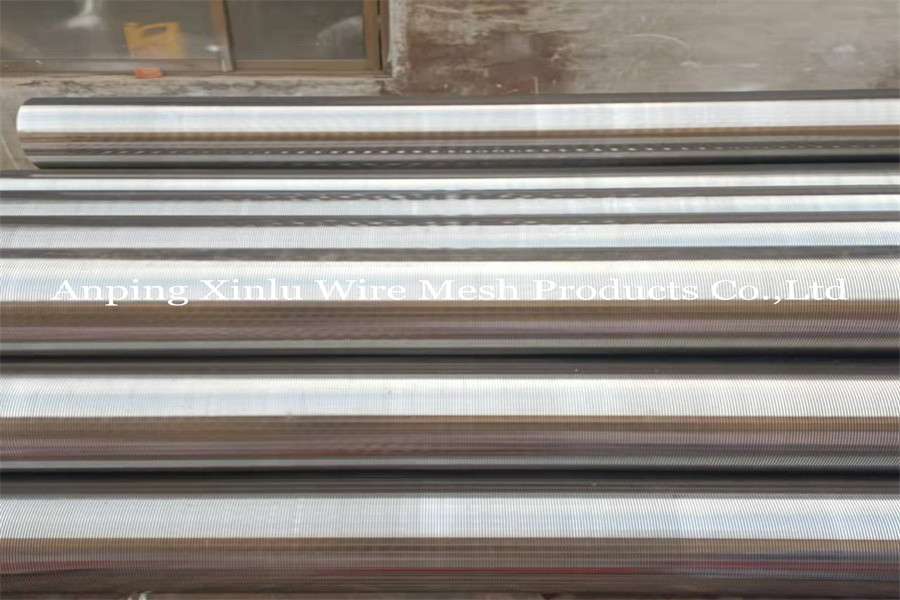

Sand Control Screens /Solid-Liquid Separation Screen Tube/ Profile Wire Screen
Sand Control Screens Introduction:
The full-program welding guarantees the strict continuous integrity of the product, which makes it form the ideal gap size.
Compared with the welding process commonly used in China, the filter water pipe or sieve plate produced by us has a smooth pipe surface. Produces angular edges, no burrs, uniform gaps and no leakage of grease.
All production processes are produced by professional production personnel using advanced and sophisticated professional equipment. Product specifications and raw materials can be customized according to customer needs (usually used 304, 316, 316L), all products are strictly in accordance with the product authority standards for production inspection, to ensure product quality, thereby ensuring the interests of our customers, with the most economical investment Get the highest productivity.
Material: stainless steel 304, 316, 304L 316L sieve or low carbon steel galvanized wire.
Outer diameter: 4 inches, 6 inches, 8 inches, 10 inches, 12 inches, etc. (20mm-1000mm)
Gap: 0.025mm---35mm
Standard length: 50mm-6000mm
End connection: threaded or Welded rings
Wire size: 2.2x3.0mm, 2.3x3.5mm, 2.5x4mm,3.0x4.6mm, 3.0x5.0mm, etc.
Support size: 3.8mm / 22, 3.8mm / 32, 3.8mm / 48, 3.8mm / 50
The gap can be as small as 0.025mm and the outer diameter can be up to 2500. The longest can reach 6000mm.
Packaging & Delivery: Sand Control Screen Pipe
With plastic film or buble package with weave bag, then packed in wooden boxes or container
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
According to your requirment.
Sand Control Screen Pipe Data reference table:
sizes
(inch) | OD
(mm) | slot
(mm) | Length
(m) | Tenslile
strength | collapse
Strength | wrap wire
vee-shaped wire (Width x height:mm) | support rod
Round wire (mm) |
| 3-1/2 | 88.9 | 1 | 2.9 | >22 | 10.2 | 2.3 x 3.5 | 3.0MMx22 |
| 4-1/2 | 114.3 | 1 | 2.9 | >28 | 11.5 | 2.3 x 3.5 | 3.0MM×22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 1 | 5.8 | >33 | 12.8 | 2.3 x 3.5 | 3.8MM×32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.0 x 6.0 | 5.OMM×32 |
| 8-5/8 | 219.1 | 1 | 5.8 | >34 | 21.9 | 2.3 x 3.5 | 3.8MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >50 | 38.2 | 3.0 x 4.6 | 4.0MMx48 |
| 8-5/8 | 219.1 | 1 | 5.8 | >60 | 46 | 3.05 x 6.35 | 5.0MMx48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 9 | 2.5 x 4 .0 | 3.8MM×55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >60 | 39.5 | 3.0 x 4.6 | 4.5MMx55 |
| 10-3/4 | 273.1 | 1 | 5.8 | >100 | 48 | 3.2 x 6.0 | 5.0MM×55 |
| 12-3/4 | 323.9 | 1 | 5.8 | >120 | 37.2 | 3.0 x 6.0 | 4.0MMx56 |
| 14 | 355.6 | 1 | 2.9 | >80 | 37.8 | 3.0 x 5.0 | 4.0MMx59 |
| 16 | 426 | 1 | 2.9 | >80 | 37.5 | 3.0 x 5.0 | 4.OMM×64 |
| PROFILE WIRE | | | | | | | | |
| WIDTH(mm) | 1.50 | 1.50 | 2.30 | 2.30 | 1.80 | 3.00 | 3.70 | 3.30 |
| HEIGHT(mm) | 2.20 | 2.50 | 2.70 | 3.60 | 4.30 | 4.70 | 5.60 | 6.30 |
| SUPPORT ROD | | | | | |
ROUND |
| WIDTH(mm) | 2.30 | 2.30 | 3.00 | 3.70 | 3.30 | Ø2.5--Ø5mm |
| HEIGHT(mm) | 2.70 | 3.60 | 4.70 | 5.60 | 6.30 | ---- |
FAQ
The Important Question: How Many Meters of the well deep can be used in?
A: Common screen pipes can be used in wells with a depth of 200-300 meters.
Large wire can also be customized for 650m deep well.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
---------------------------------------------------------------------------------------------------------------
